Meishuo MPA-S-124-C 15A 5pins promotion price hot sell general PCB power relay

FOB Reference Price:Get Latest Price
$0.07 - $0.345 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
MEISHUO
Model Number:
MPA-S-124-C
Theory:
Electromagnetic Relay
Usage:
PCB
Size:
Subminiature
Protect Feature:
Sealed
Contact Load:
intermediate power
Color:
Black
Contact Form:
1C
Approvals:
UL,RoHS,TUV,CQC
Part Number:
PCB Relay
Pins:
5pins
Coil Voltage:
24 VDC
Outline Dimension:
18.7*15.0*15.2mm
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Packing for PCB relay
-100pcs/small box
-1000pcs/innner carton
-2000pcs/carton
Port
Ningbo or Shanghai for PCB relay
Meishuo
    24VDC 15A relay types

We are manufacture!
-Our control standard: Same as Omron!
-Our capacity:150,000,000 pcs per year!
-Our Quality: Zero customer complaint within 3 Years!

Product Information

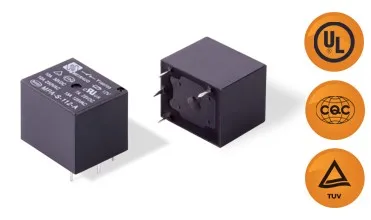

Relay feature


- 15A switching capability


- 1 form A and 1 form C configurations


- Subminiature, standard PCB layout


- RoHS compliant

Approvals
UL
TUV
CQC

Rating
10A 250VAC/7A 28VDC

10A 250VAC/30VDC

10A 250VAC/30VDC
15A 125VAC   15A 250VAC
TV-5

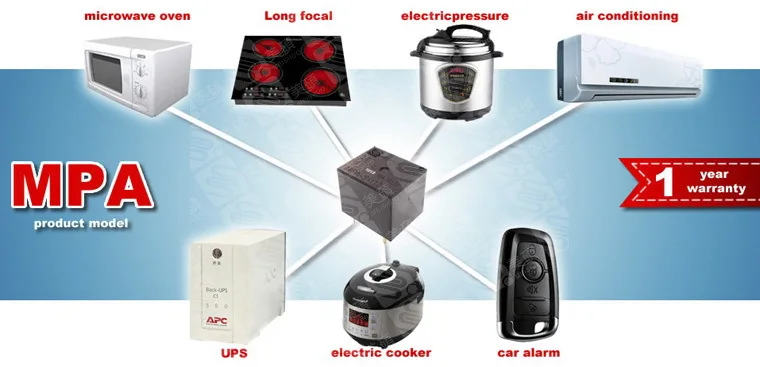

Product application


Specification & Characteristics
Contact Form
1A - NO, 1C - NO/NC
Contact Material
AgSnO2, AgCdO
Contact Resistance
100mΩ(1A 6VDC)
Contact Rating
15A 14VDC/125VAC,10A 30VDC/250VAC
Max.Switching Current
15A, 10A
Max.Switching Voltage
250VAC/28VDC
Electrical Life
100000 OPS
Mechanical Life
10000000 OPS
Initial Insulation Resistance
100MΩ
Dielectric Strength
1500VAC/750VAC
Operate Time
≤10ms
Release Time
≤10ms
Ambient Temperature
-40°C ~ +105°C
Termination
PCB
Construction
Sealed
Coil Power
0.36w, 0.45w, 0.6w, 0.8w
Certificates
UL, TUV, CQC, ROHS, REACH, TV-5
Unit Weight
10g

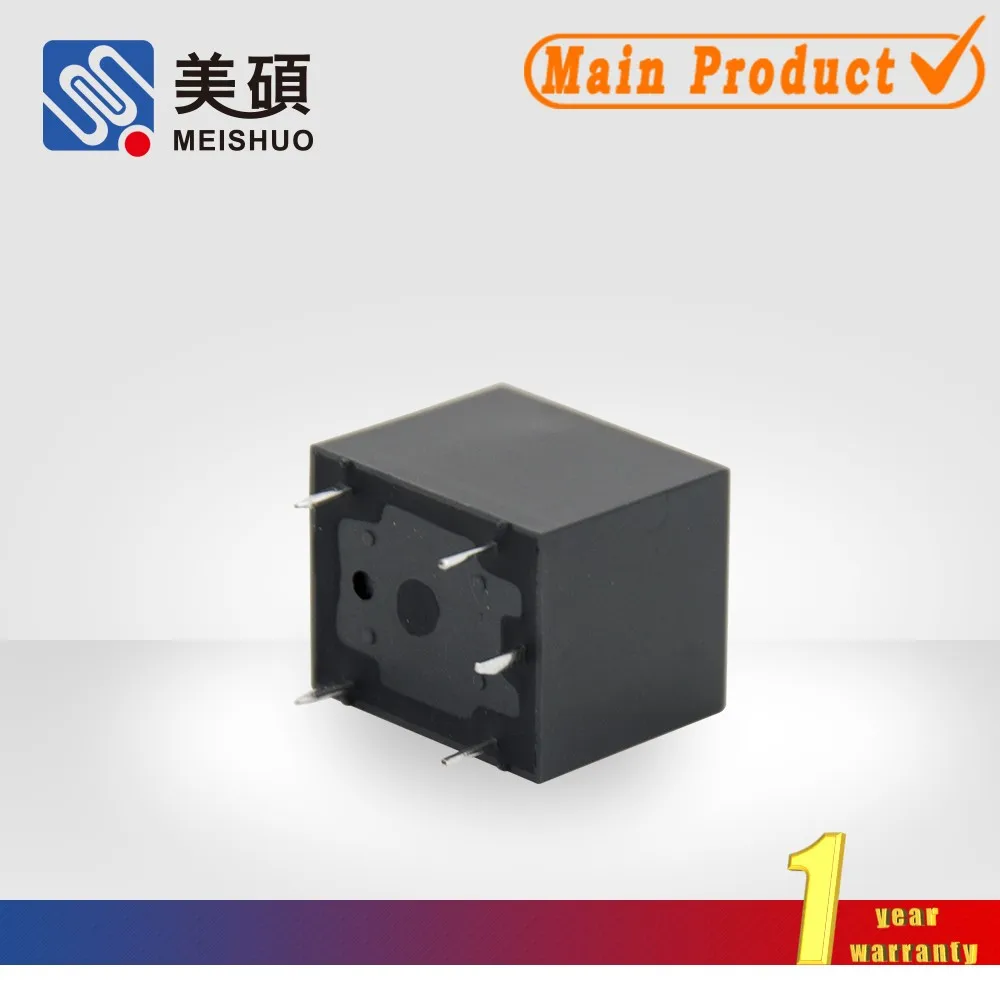

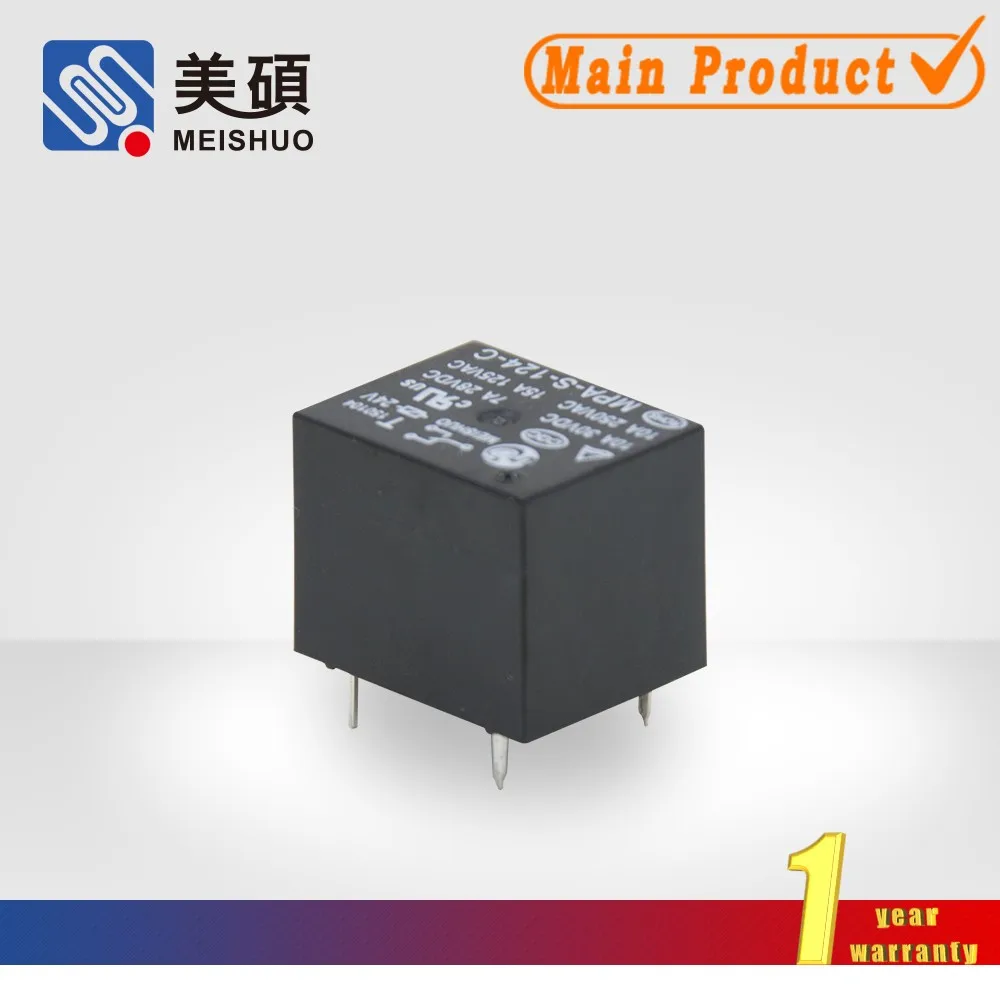

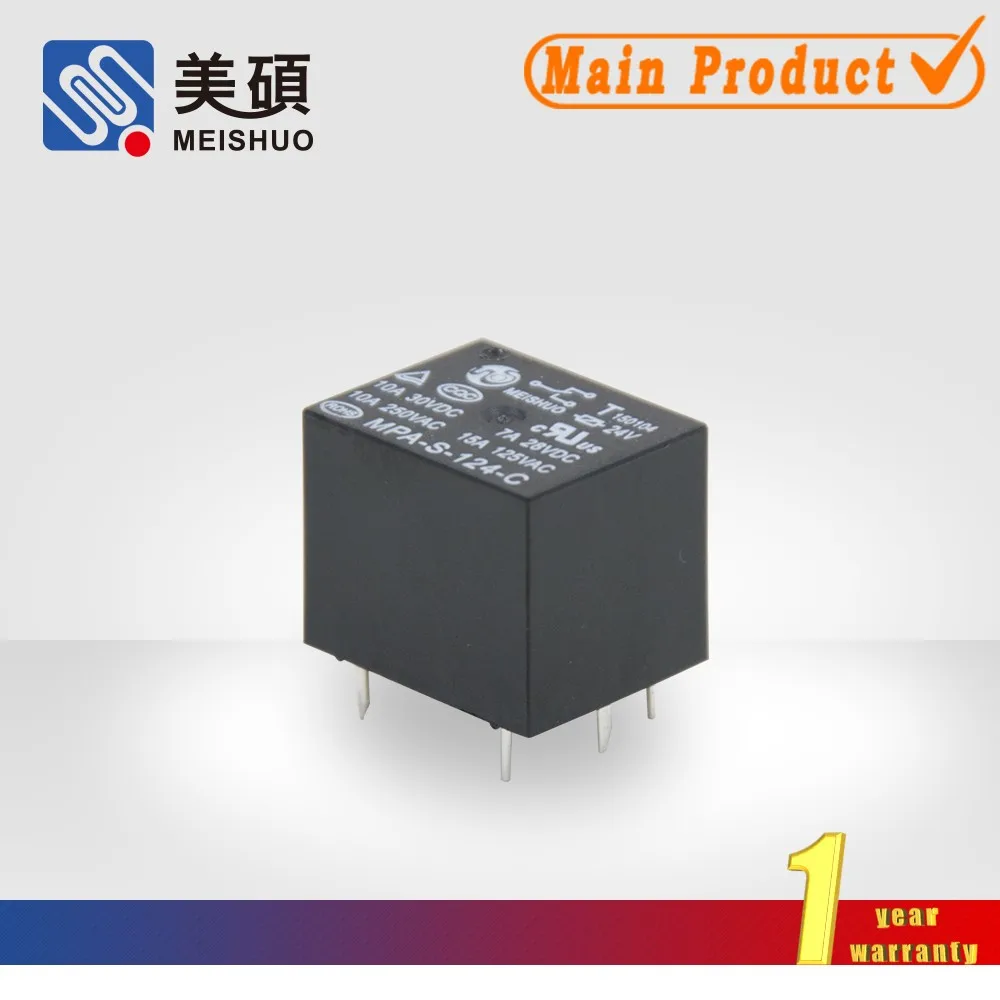

Relay Photos:

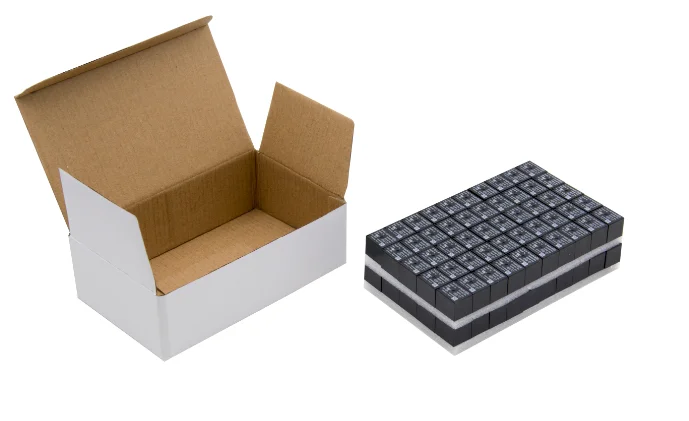

Packing:

Step A: Foam protection.100pcs for one inner box

Step B: 10 inner boxes for one middle box.Total 1000pcs

Step C: 2 middle boxes for 1 master box around with pearl cotton.Total 2000pcs.

Step D: Meishuo normal export with weight & size.

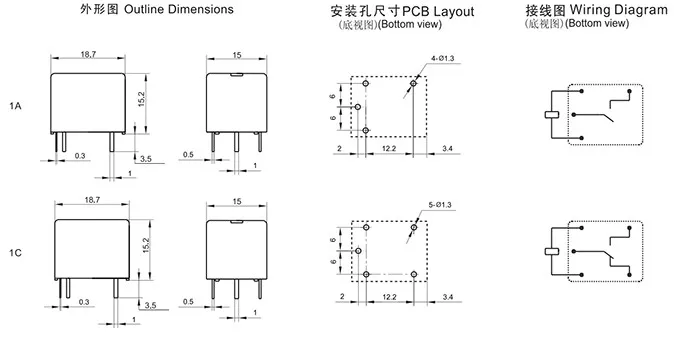

Drawing:


Advantages New

R&D System
Standard R & D process
Professional development process
Fast customization R & D

                                                                                                                                 Raw Material System
                                                                                                                                 Standard test
                                                                                                                                 Material performance specification
                                                                                                                                 Supplier control

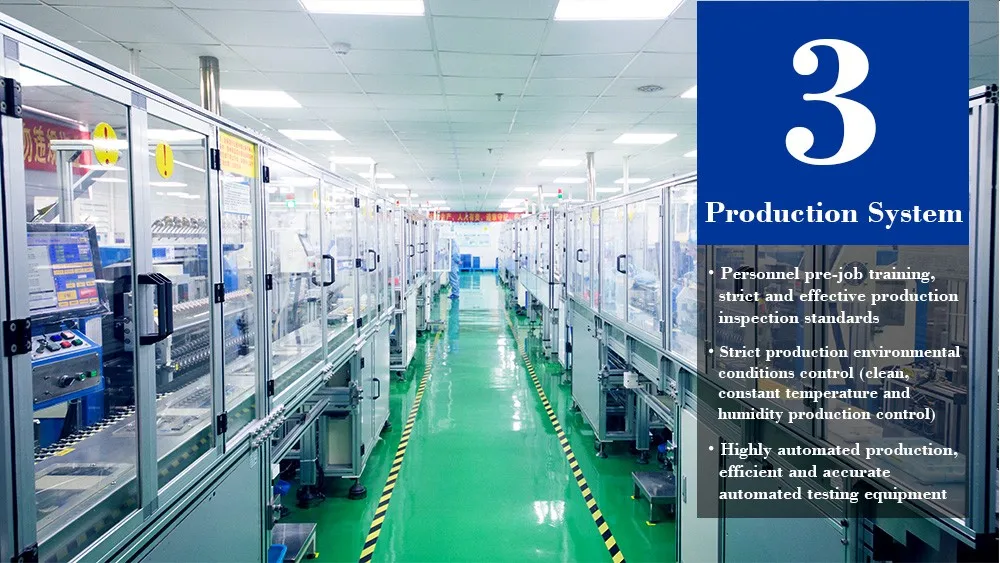

Production System
Personnel pre-job training, strict and effective production inspection standards
Strict production environmental conditions control (clean, constant temperature and humidity production control)
Highly automated production, efficient and accurate automated testing equipment

                                                                                 Quality Assurance System
                                                                                  Raw materials - production - factory inspection control
                                                                                  Supply Chain Quality Management, 5M1E
                                                                                  UL witnessed laboratory and national laboratory accreditation

Storage System
Constant temperature and humidity
Goods piling limit
Periodic rework inspection of inventory products

Our Customers

Certificates

Meishuo Certificates:


Company information

About Meishuo:

1) It's a factory, built in Feb.2007
2) Now, employs more than 400 people, enjoyee 12, quality person 22
3) Main products: relays, sockets, connectors, harness, auto parts
4) Production lines: 15 lines
5) Capacity: 400000 pcs per day

Meishuo Factory:


Meishuo Management:


Our services

What do we serve after sales:


Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.


After sales service:
•We pay high attention to your feed back after receive the goods.
•We provide 12 months warranty after goods arrive.
•We promise all parts available in lifetime use.
•We positively revert your complain within 48hours.

Professional sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
